INTRODUCING THE TOOLTIP INE200 - THE SMART PRECISION EDGER

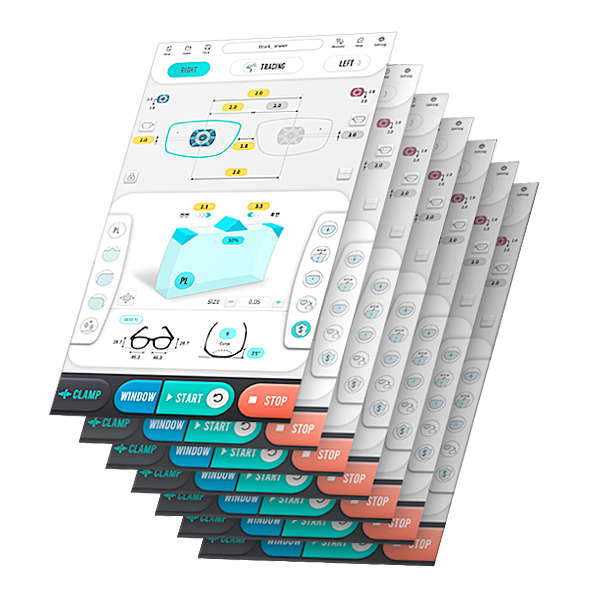

13.3” LCD & User friendly interface

This class-leading 13.3″ touchscreen offers a user-friendly, visual interface. All key functions are displayed and configurable on a single screen, making operation smooth and efficient.

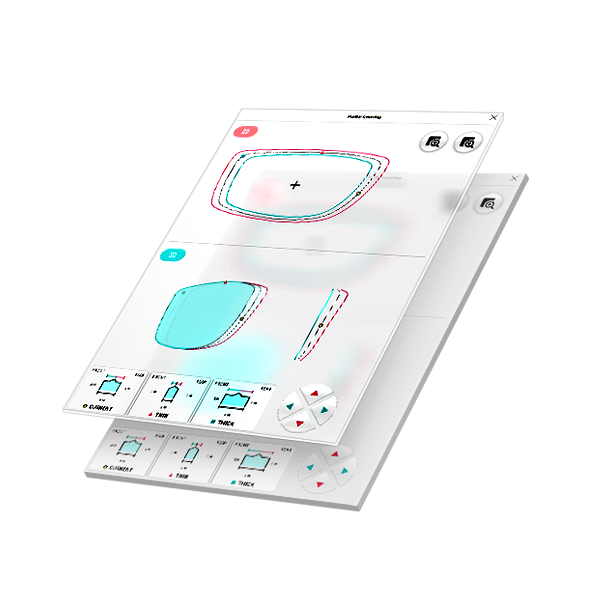

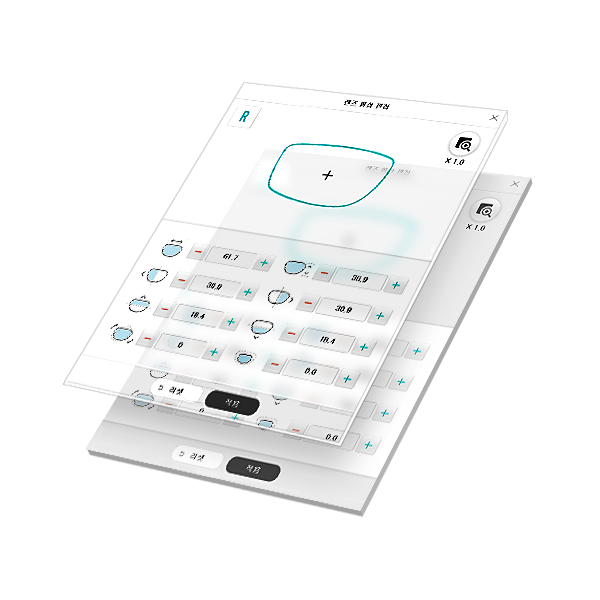

2D & 3D Editing Capabilities

Simultaneously switch between 2D design and 3D simulations to precisely plan beveling or locate optimal groove positions. Full manual control is also available for utmost precision.

Flexible Shape Editing

Choose from eight edging modes to finely customize lens edges. This flexibility enables detailed shaping to suit diverse lens designs.

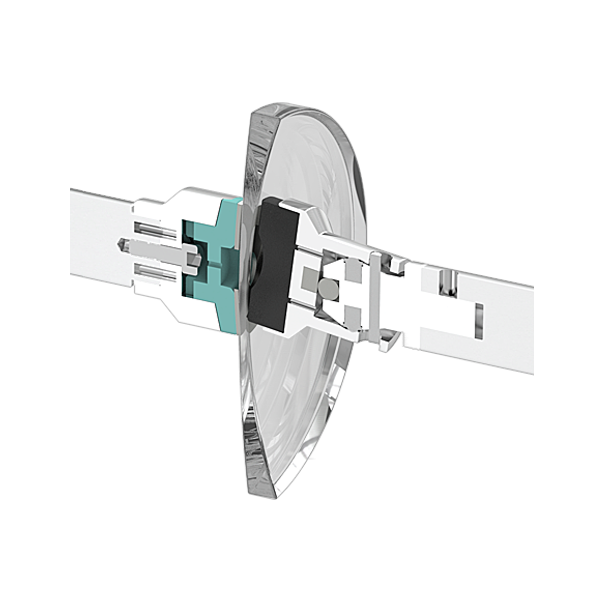

Adaptive Clamp Tilting

When gripping highly curved lenses, the clamping head rotates to match the lens curvature, evenly distributing pressure. This ensures secure, stable holding during processing.

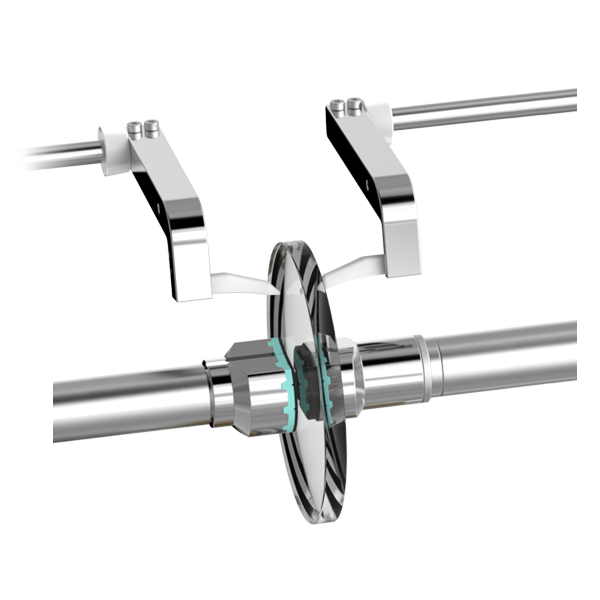

Dual-Sided Sensing

Equipped with two sensing tips made from specialized material, the INE200 can sense both sides simultaneously—cutting thickness measurement time in half.

Integrated Wide Roughing Wheel

With a 23 mm wide roughing wheel built in, the unit handles high-curve and thick lenses with enhanced stability and precision.

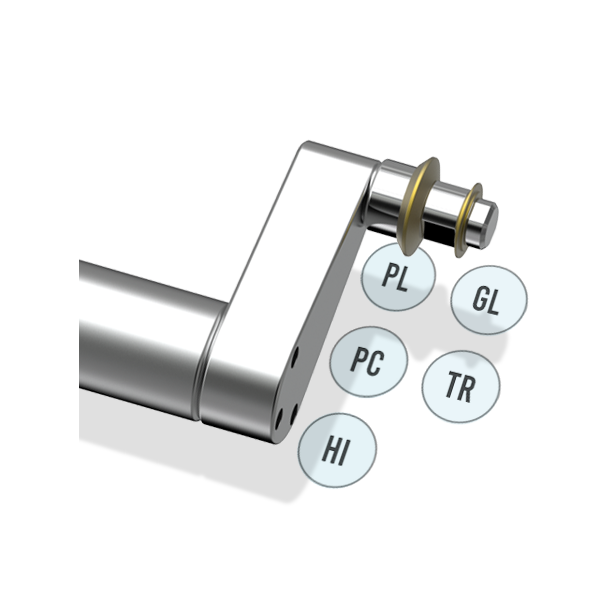

Broad Material Compatibility

Plastic / Polycarbonate / High Index / Glass / Trivex

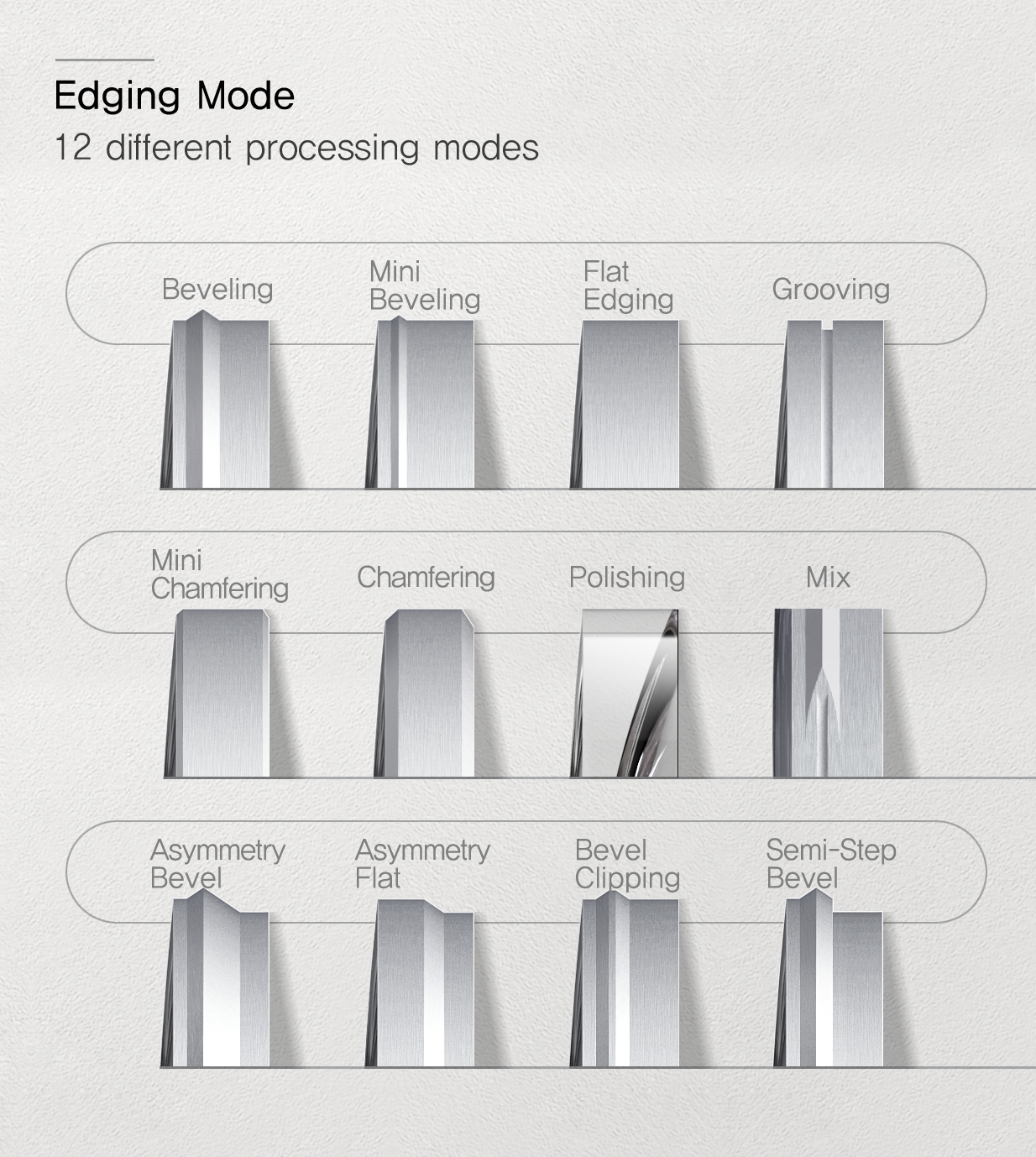

Multiple Processing Modes

Offers 12 distinct processing modes, including beveling, mini-bevel, flat edging, grooving, chamfering, polishing, asymmetry bevel/flat, bevel clipping, semi-step bevel, and hybrid modes.

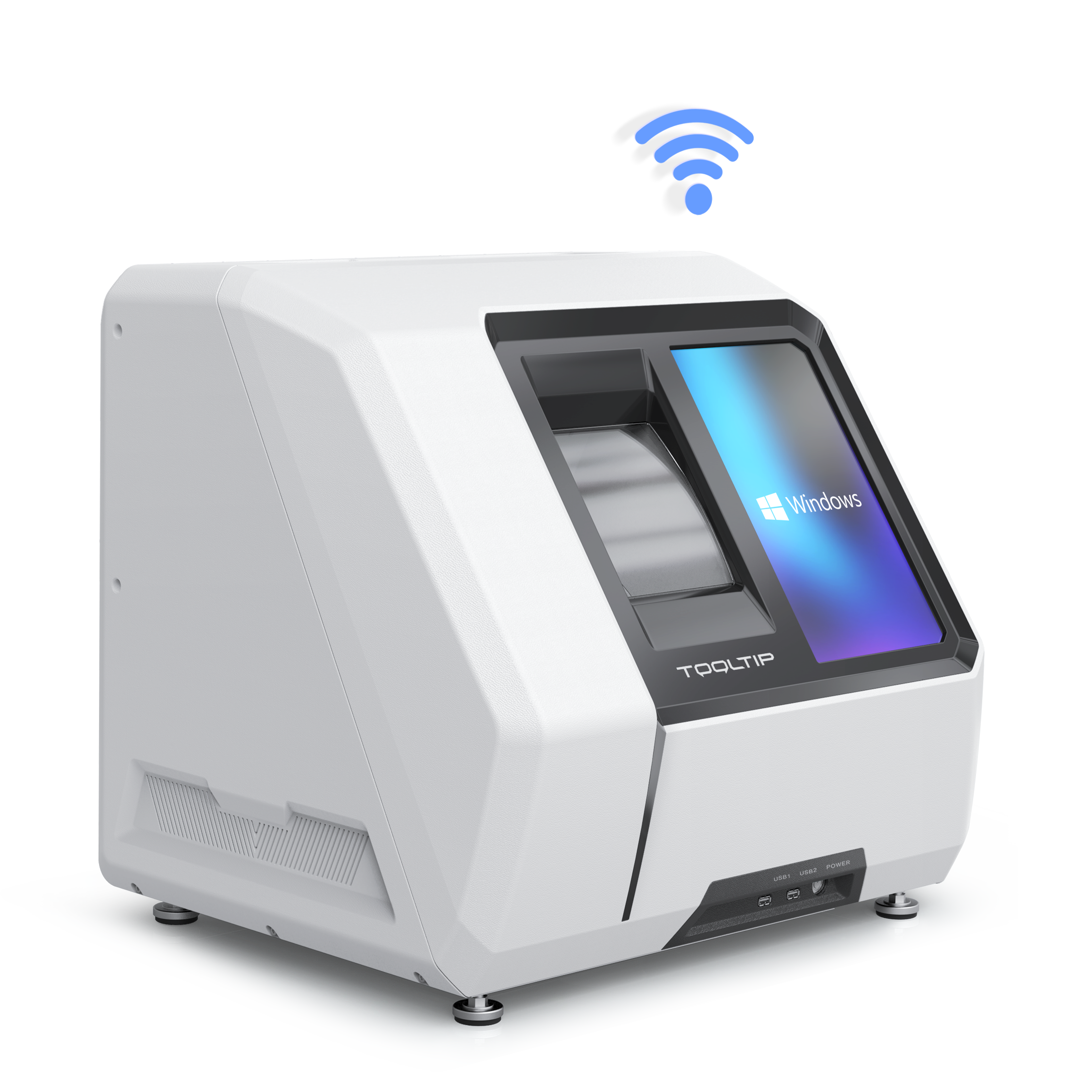

Free Remote Customer Service

Wi-Fi-enabled remote customer service delivers real-time problem diagnosis and software support, ensuring customer satisfaction.

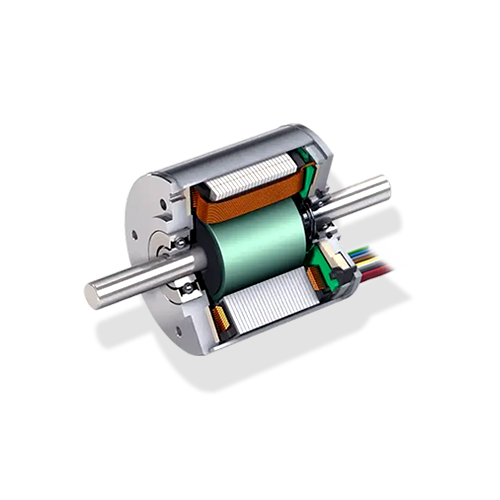

High performance BLDC motor

Equipped with 530W high performance BLDC to improve lens processing speed and durability which provides precise control and stable processing performance.

Specifications & Utilities

Lens Material Compatibility: Plastic / Polycarbonate / High-Index / Glass / Trivex
Finishing Modes: Bevel / Mini-Bevel / Rimless / Grooving / Chamfer / Hybrid / Polishing
Functions: Bevel & grooving manual / Lens edit / Partial grooving / Frame change / Retouch / Safety mode
Display: 13.3″ Full HD (1920×1080) touchscreen
Wheels: Roughing (wide) / Roughing glass / Finishing / Polishing
Utilities: Auto door, dual sensing, USB interface, remote control service
Lens Size Range: 20 mm minimum to 93 mm maximum
Power Supply: 100–240 V, 50/60 Hz (universal)
Power Consumption: 1.5 kVA
Dimensions & Weight: 518 mm (W) × 504 mm (D) × 596 mm (H); 55 kg
